CRX CNC Tending Drawer System
Compact, Collaborative CNC Automation—Now With Drawers

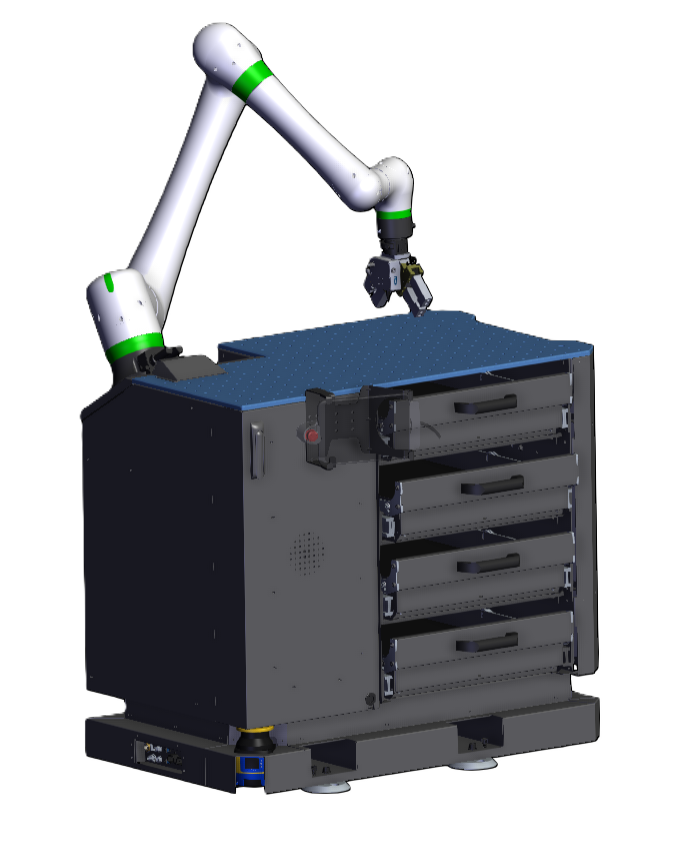

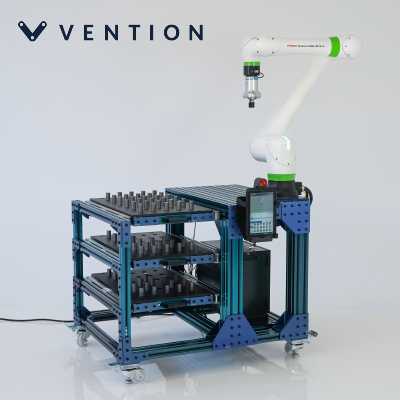

The CRX CNC Tending Drawer System from Vention is a collaborative automation cell designed to streamline CNC machine loading and unloading for small‑ to medium‑sized parts. Built around a FANUC CRX collaborative robot and Vention’s engineered drawer system, this solution delivers consistent, unattended machine tending in a compact footprint—without turning your shop floor into a science experiment.
This system is ideal for manufacturers looking to automate repetitive CNC operations while maintaining flexibility, safety, and fast deployment.

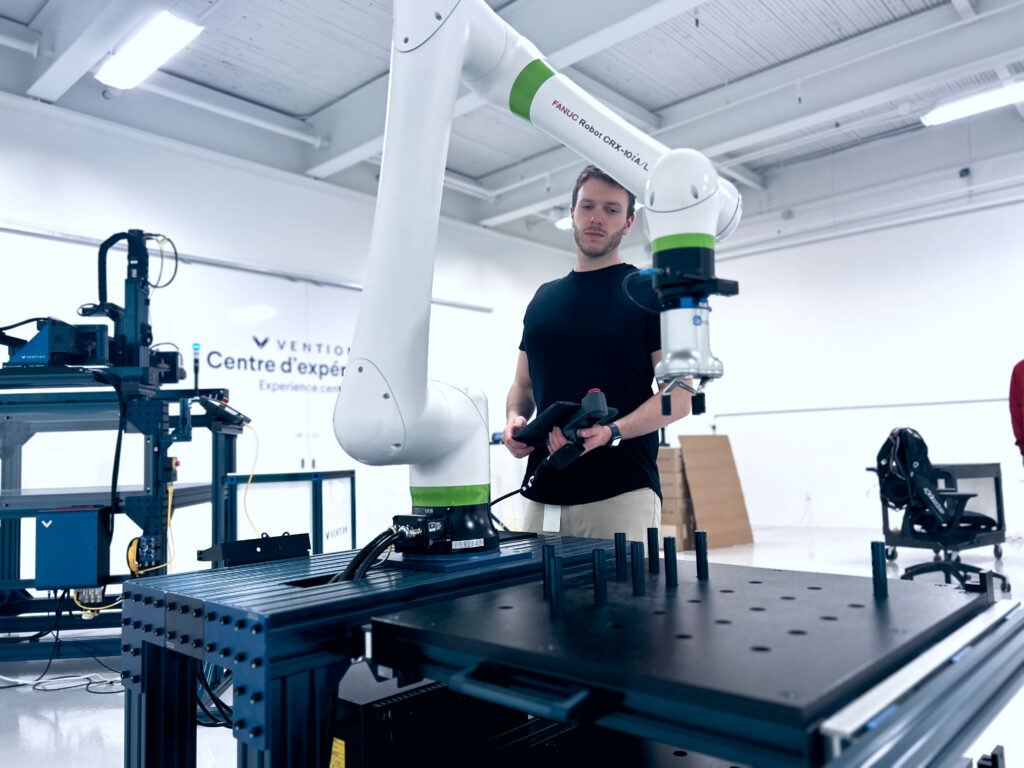

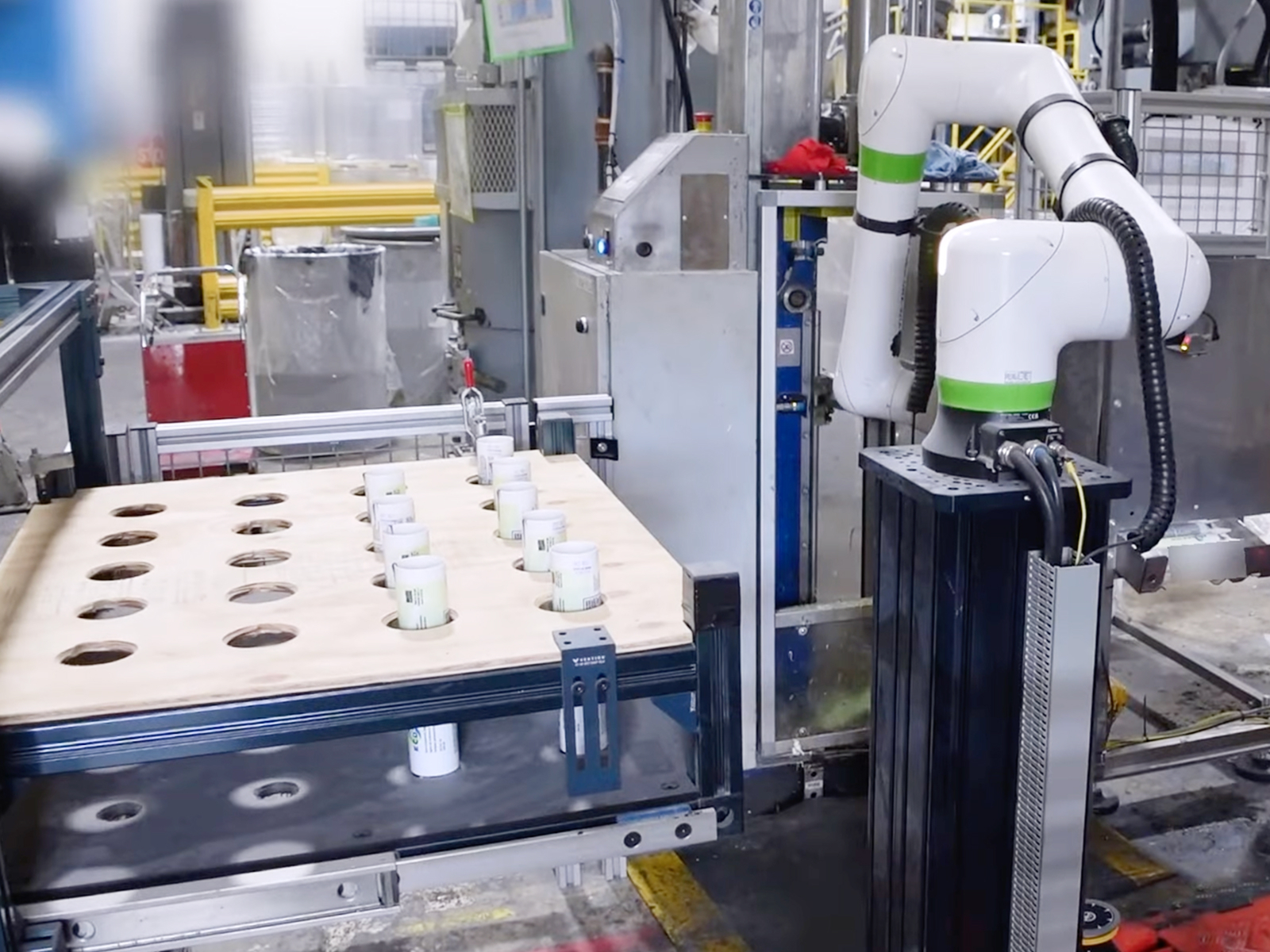

How It Works
- The CRX cobot picks raw stock from a fixed pickup location on the top work plate.
- The robot engages the drawer handle and opens a drawer.
- Raw material is placed into the open drawer.
- The drawer is closed and the CNC process runs.
- After machining, the robot opens the drawer, retrieves the finished part, and places it back onto the top work plate.
- The cycle repeats—reliably, consistently, and without complaining about overtime.
Compatibility
Suitable Applications
Machine Tending/Part TransferSpecifications
- FANUC CRX Collaborative Robot Options
Compatible with CRX‑10iA, CRX‑10iA/L, or CRX‑20iA/L models to match payload and reach requirements. - Vention‑Engineered Drawer System
Up to 4 drawers with 1.45 m² of area per drawer for efficient part storage and staging. - Customizable Gripper
Designed to handle a wide range of CNC workpieces. - Integrated Area Safety Scanners
Collaborative operation with built‑in safety considerations. - Power & Control Cabinet
Clean, integrated system architecture.
Software & Controls
FANUC Software
Proven, industry‑standard robot control for CNC tending applications.
Workpiece Flexibility
- Supports standard or custom work trays
- Drawer trays accommodate parts ranging from 10–110 mm in diameter or side length
Why This System?
Because CNC machines make money when they’re cutting—not waiting on operators. The CRX CNC Tending Drawer System delivers a practical, collaborative approach to machine tending that fits real shops, real parts, and real production goals.
In short: less idle spindle time, more consistency, and automation that actually fits.
CRX CNC Tending Drawer System
| Baseplate Size | 1185 mm x 720 mm |
| Cell Size | 1858 mm x 2500 mm |
| Power | Up to 15A @ 120V or 10A @ 240V |
| Air | One 12 mm pneumatic fitting (no air required for demo configuration) |
